2 Inch Medical High Pressure 4000psi Chromed Thread Bottom Gauge

2 Inch Medical High Pressure 4000psi Chromed Thread Bottom Gauge

2 inch high pressure 4000psi gauge chromed connection with back connector.
  • 2 Inch Medical High Pressure 4000psi Chromed Thread Bottom Gauge
  • 2 Inch Medical High Pressure 4000psi Chromed Thread Bottom Gauge
Specifications:

Specifications of 2 Inch Medical High Pressure 4000psi Chromed Thread Bottom Gauge


Dial

1.5”,2”,2.5”,3”,4″,6”,8",10"(40mm,50mm,63mm,75mm,100mm,150mm,200mm,250mm)

Scale ranges

-1/600bar

Accuracy class

1.6%(≤63mm);1.0%(>63mm)

Process connection

1⁄4″(63mm),1⁄2″(100 mm or above )NPT or BSP or BSPT

Bourdon tube

Brass

Wetted parts/socket

Brass

Movement

Brass

Pointer

Aluminum, micrometer adjustable available

Welding

Sn Welding; Silver alloy Welding for high pressure series

Case material

Stainless steel 304,DIN bayonet bezel or crimped ring

Window(lens)

Tempered glass, pc or safety glass

Fill

Glycerin or silicone

IP class

IP 65

Product Pictures:

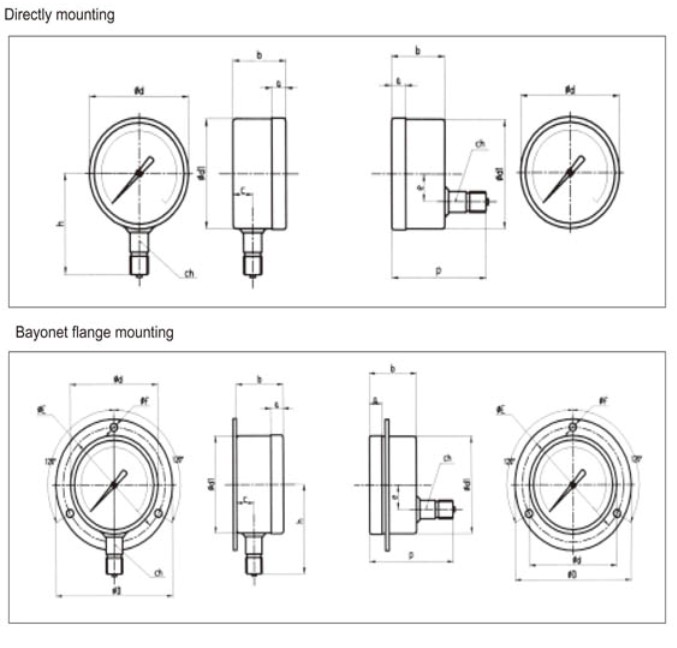

Dimension:

Dimension of 2 Inch Medical High Pressure 4000psi Chromed Thread Bottom Gauge


2 inch bottom connection crimped ring pressure SS case brass internal gauges liquid dimension
2 inch bottom connection crimped ring pressure SS case brass internal gauges liquid dimension
2 inch bottom connection crimped ring pressure SS case brass internal gauges liquid dimension
