4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges

4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges

Electric contacts pressure gauge is widely used to petrochemical, chemical, metallur-gical electric power fields and so forth ,or applied to measurement pressure of fluid medium in the machine. Usually, electric contact pressure gauge matches with relevant electrical apparatus, for instance,relay and contacto.
  • 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges
  • 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges
  • 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges
  • 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges
  • 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges
  • 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges
Specifications:

specification of 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges


Dial

2.5”,4”, 6”(63mm,100mm, 150mm)

Case

Stainless steel

Lens

Common glass or Safety glass

Ranges

Minimum: 0~0.1Mpa

Maximum: 0-100Mpa

Minimum negative pressure: -0.1Mpa

Maximum negative pressure: -0.1~2.4Mpa

Accuracy Class(Indication)

1.0%;1.5%

Accuracy Class(Setting)

4%

Quantity of Contacts

1 or 2, (Φ 100mm, 3 or 4 contacts available)

Maximum Working Voltage

AC380V or DC220V

Maximum Current

1A

Contact Power

30VA

Connection Size

M20 × 1.5 Customized connection

Protection Class

IP 54

Temperature Effects

When temperature deviates from 20 ± 5℃, the error of set point is not more than 0.6%/10℃

Product Pictures:
Dimension:

Dimension of 4 Inch All Stainless Steel back Connection Panel Mount Magnitive Electric Contact Pressure Gauges

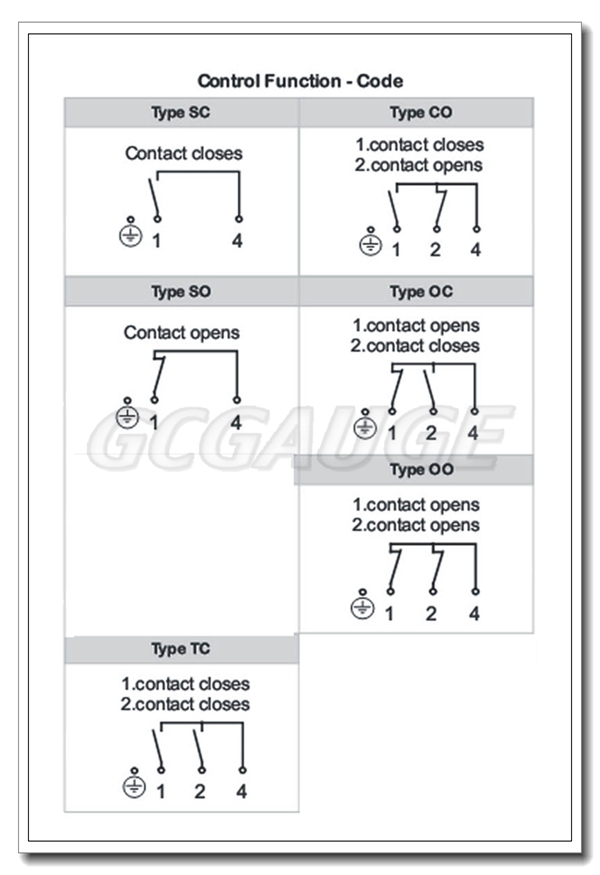

4 All stainless steel back connection panel mount magnitive electric contact pressure gauges dimension
4 All stainless steel back connection panel mount magnitive electric contact pressure gauges dimension
4 All stainless steel back connection panel mount magnitive electric contact pressure gauges dimension
