High Quality all Stainless Steel I Shape Diaphragm Pressure Guages

High Quality all Stainless Steel I Shape Diaphragm Pressure Guages

Diaphragm pressure gauge which is used in the corrisive position.
  • High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
  • High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
  • High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
  • High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
  • High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
  • High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
Specifications:

Specification of High Quality all Stainless Steel I Shape Diaphragm Pressure Guages


- Range: φ dm=56 -0.1~0 / 0~40MPa
            φ dm=36 0~1.6 / 10~40MPa
Accuracy: (add to instrument accuracy) ± 0.5% for direct mounting; ± 1% for dampeners, over pressure protector, distance transmission and so on.
Working Temperature: -45-+150℃
Diaphragm material: Hastelloy B, Hastelloy C, Tantalum, Titanium, Monel 316L PTEE coated
Wetted material: 321, 304, 316L(or+PTFE)
Connection: Thread M20*1.5,1/2”NPT other on request
Filling liquid: Silicone oil, luorocarbon oil, Food oil

Product Pictures:

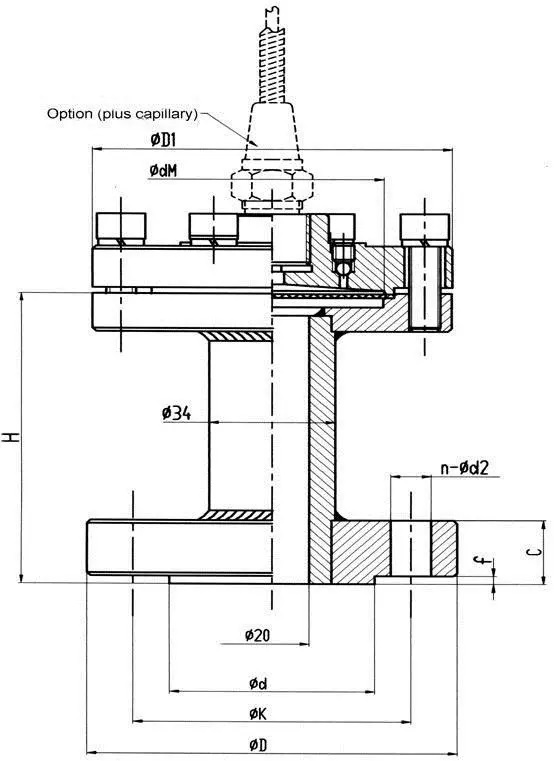

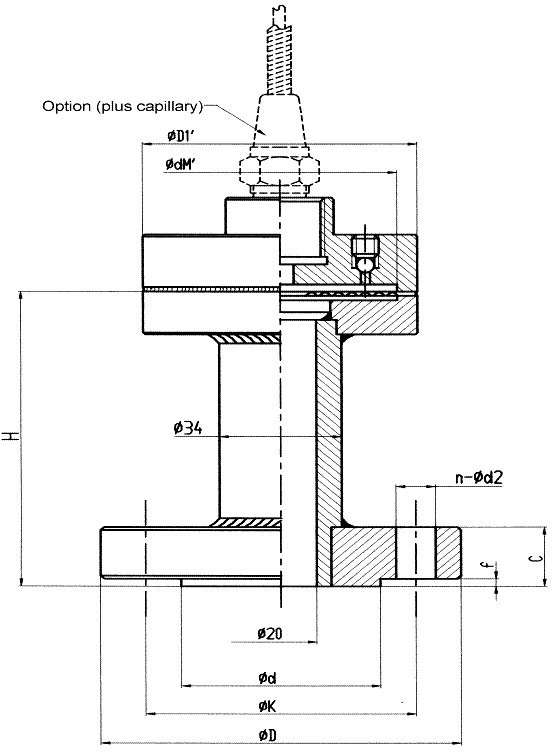

Dimension:

Dimension of High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
